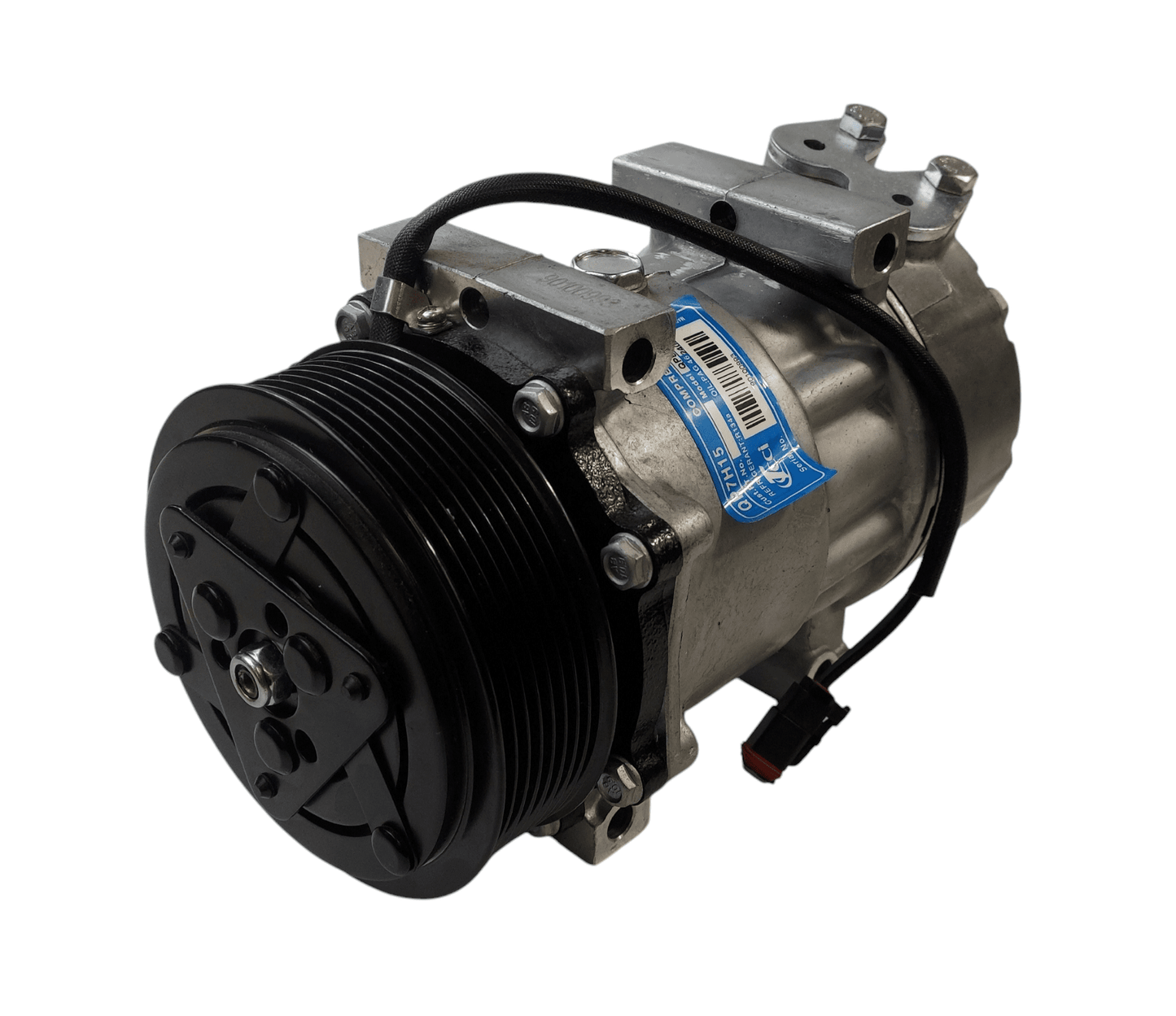

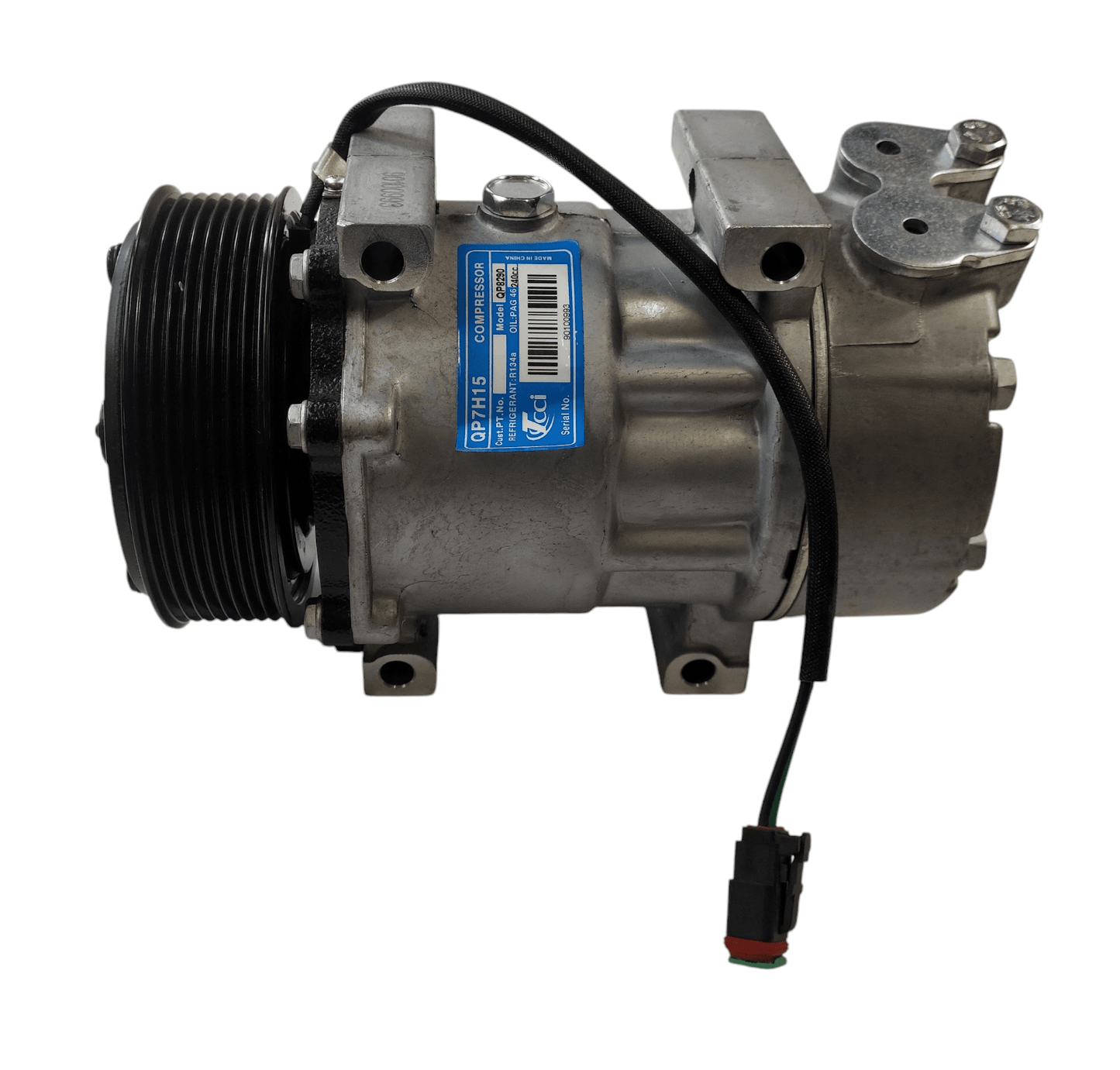

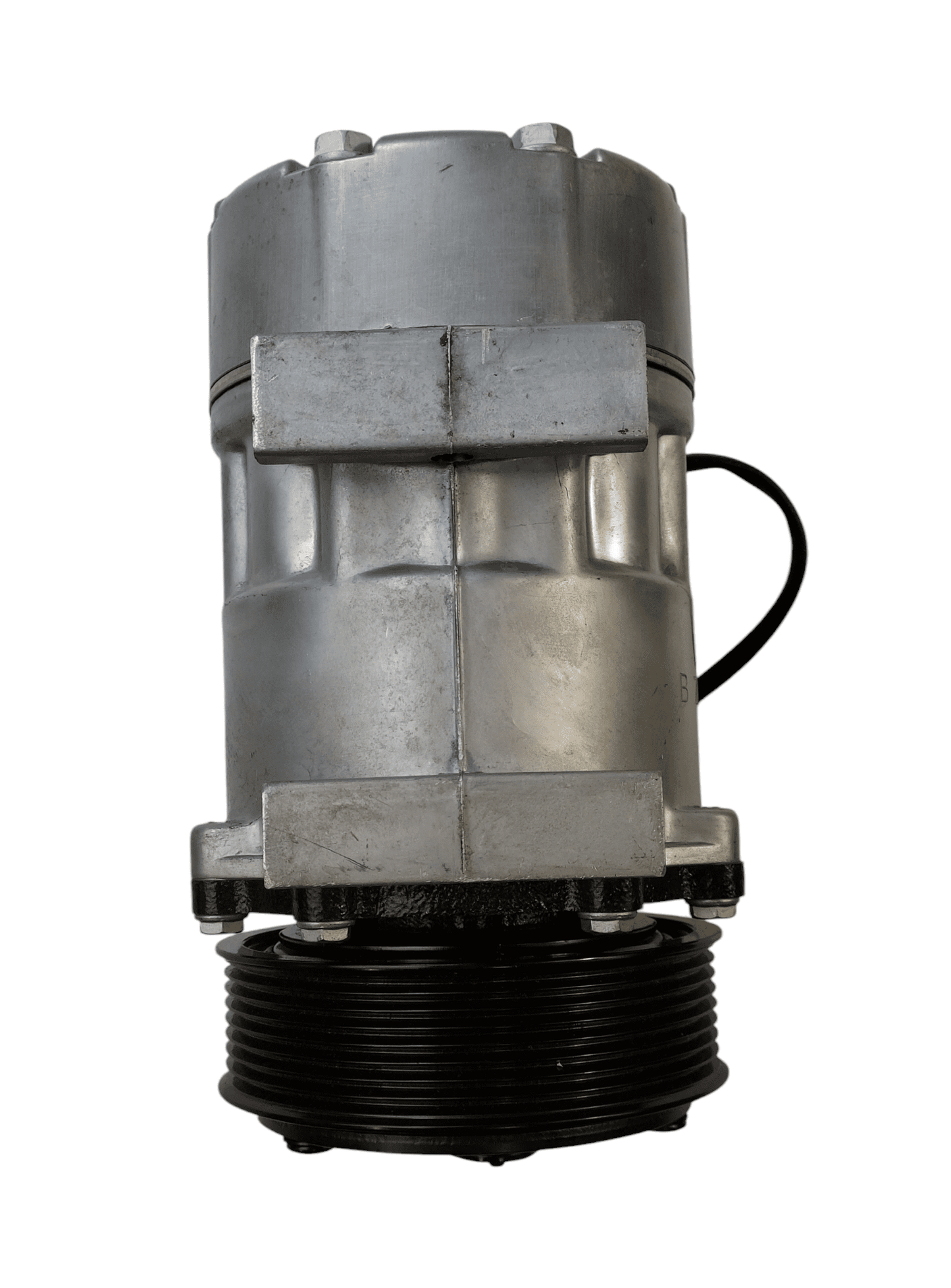

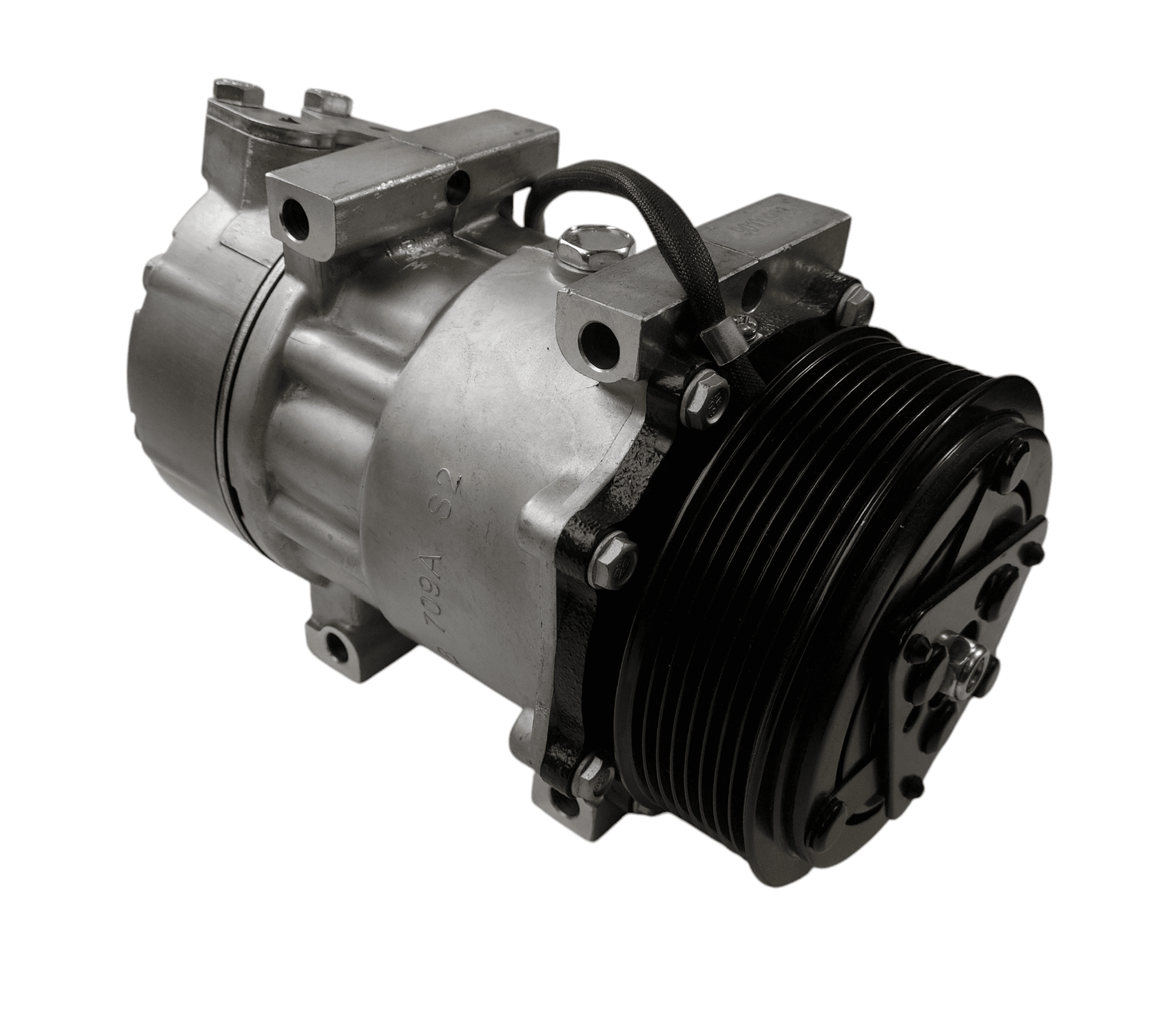

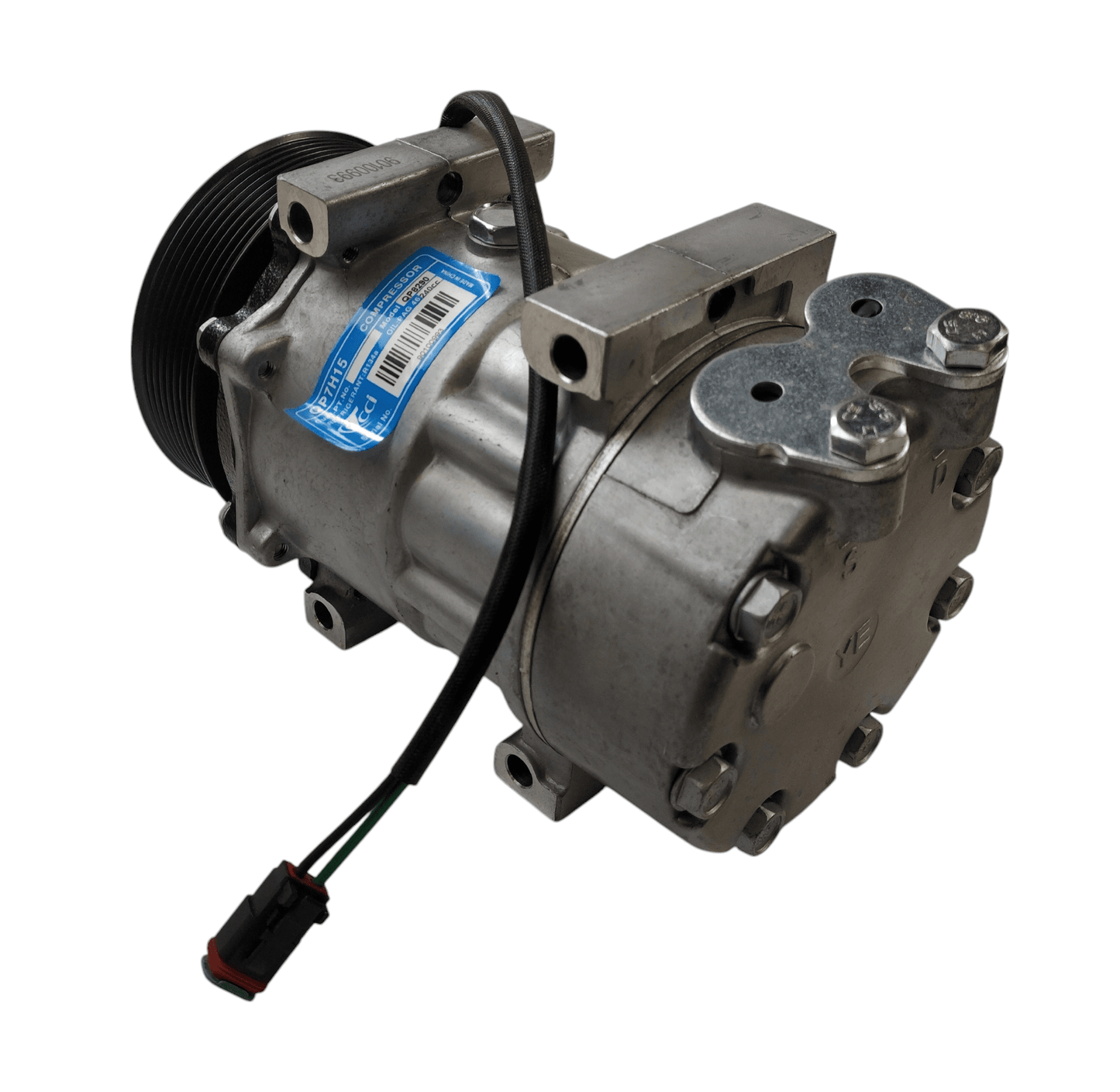

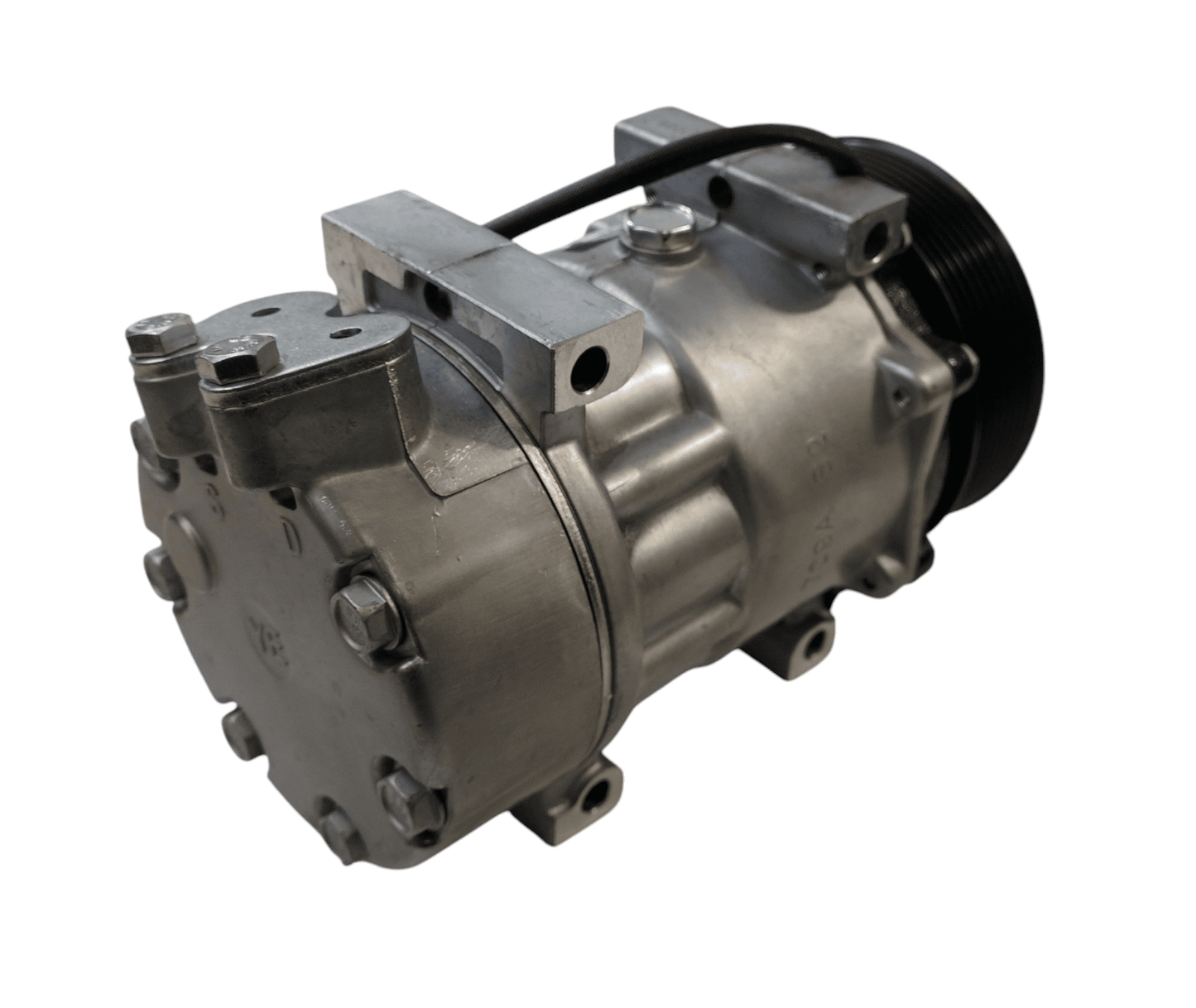

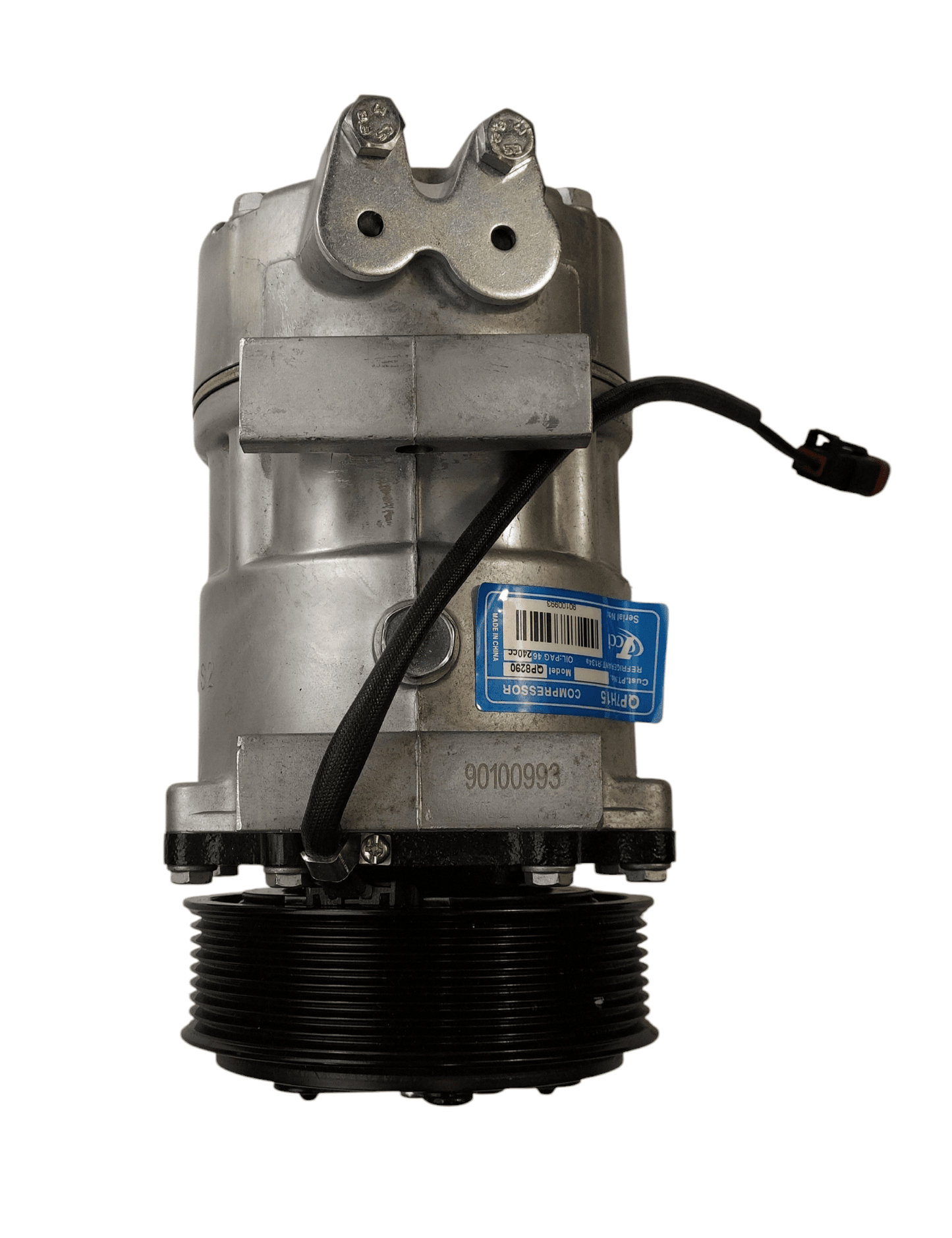

Compressor Family: SD7H15
Style: Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW

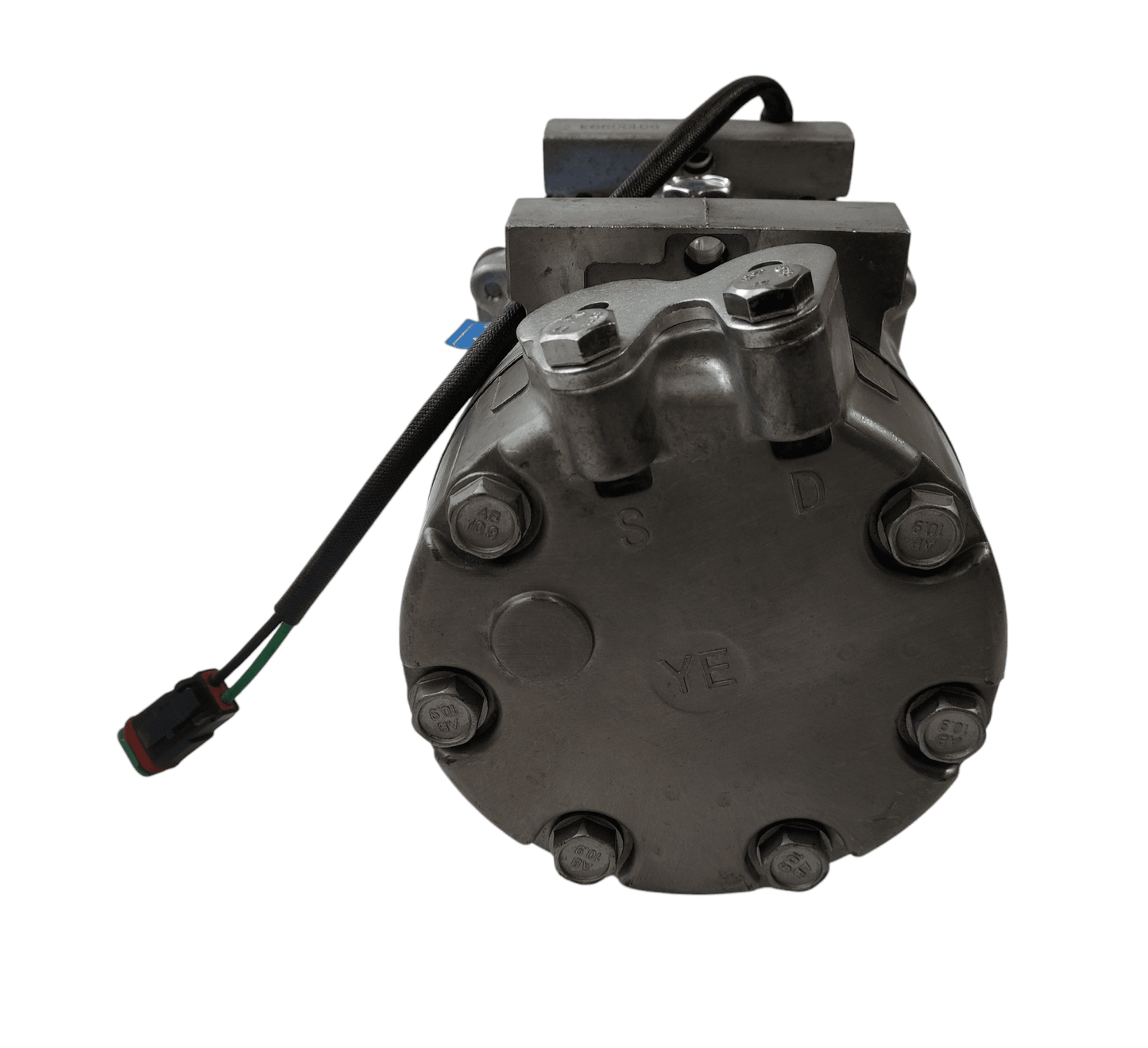

Cylinder Head: YE
Port Angle: Vertical Pad
Head Port Style: O-Ring

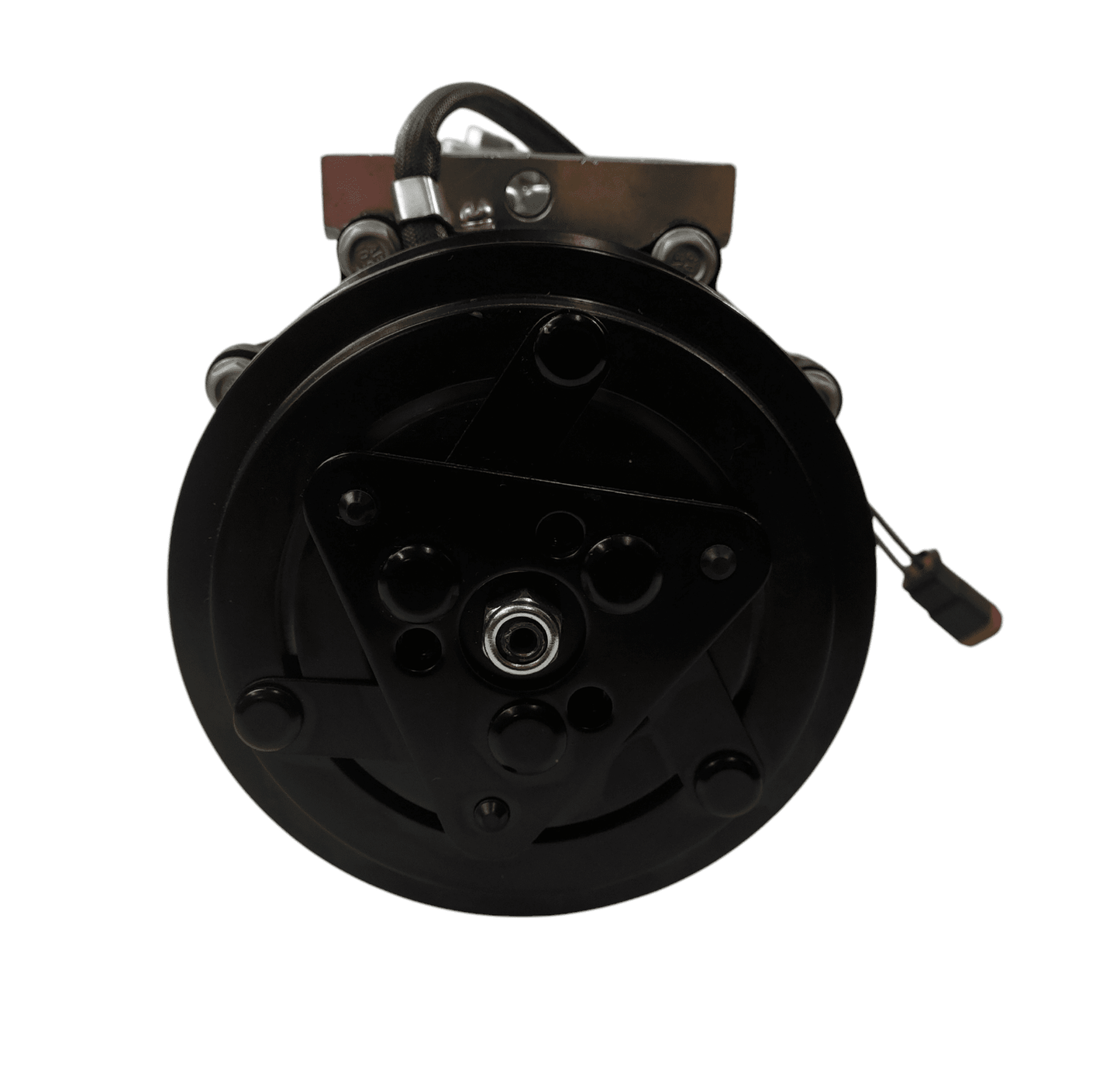

Clutch Diameter: 119 mm ~ 4 and 11/16 inches
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 24
Coil Connector: 2 Wire Deutsch
Coil Position: 12 O'clock
Oil Type: PAG 46
Oil Qty: 240cc
Refrigerant: R134a
Part Nr.
10570893, 1853081, 1888033, 2472901, 32.703, 32703G, 45045003, 570893, 813036, 8290SD, 852448N, 89476, 8FK351135-481, 8FK351135-981, 970208 4, ACP01077, ACP128, ACP128000P, ACP128000S, FE44369, KTT090010, NRF 32703G, SCAK033, SD6023, SD6241, SD7H15-6023, SD7H15-8290
Fit for:
Scania Truck:P, G, R, T Series (2003-2018),D9/11/12/ CG/CP/CR
