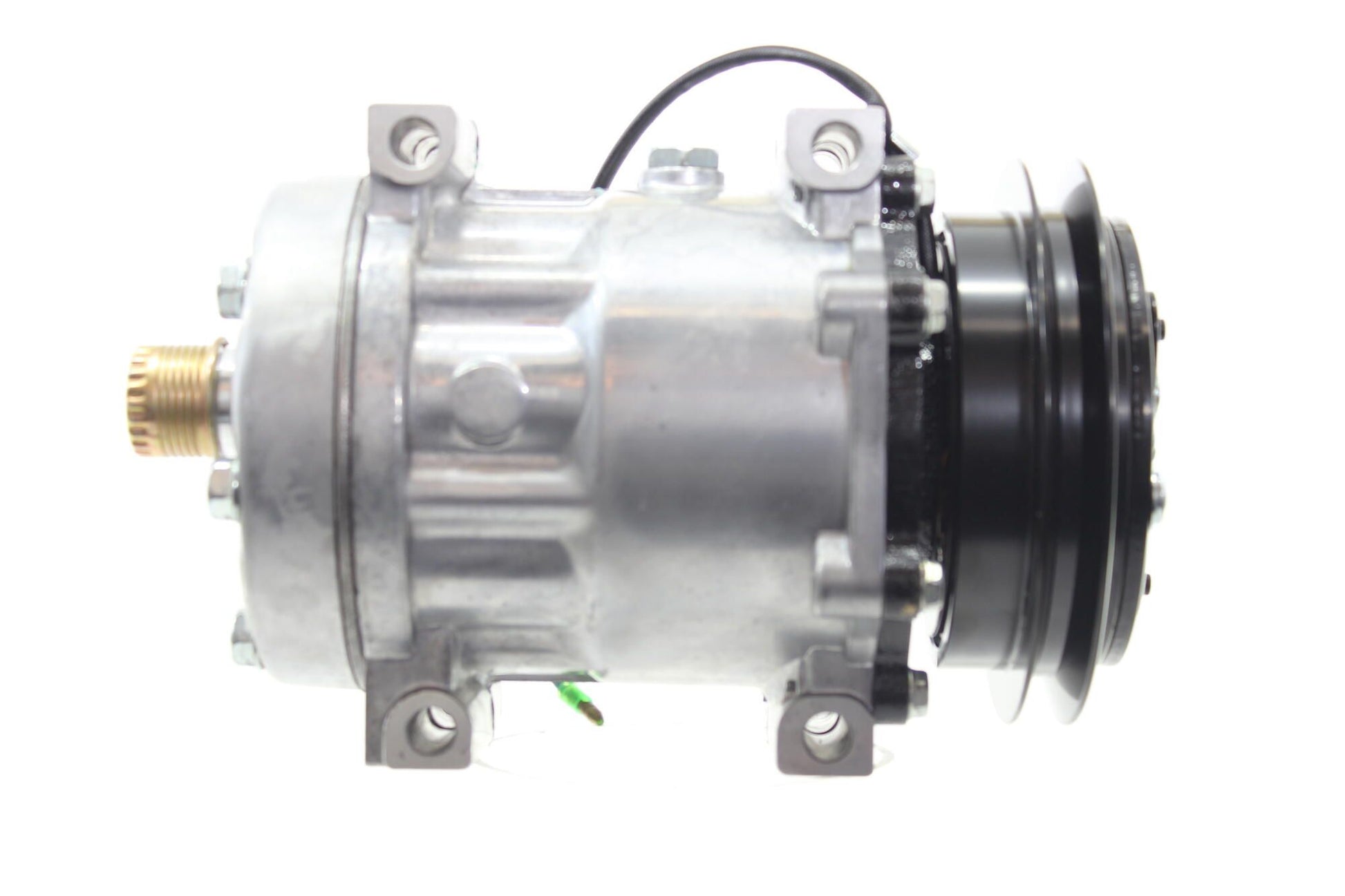

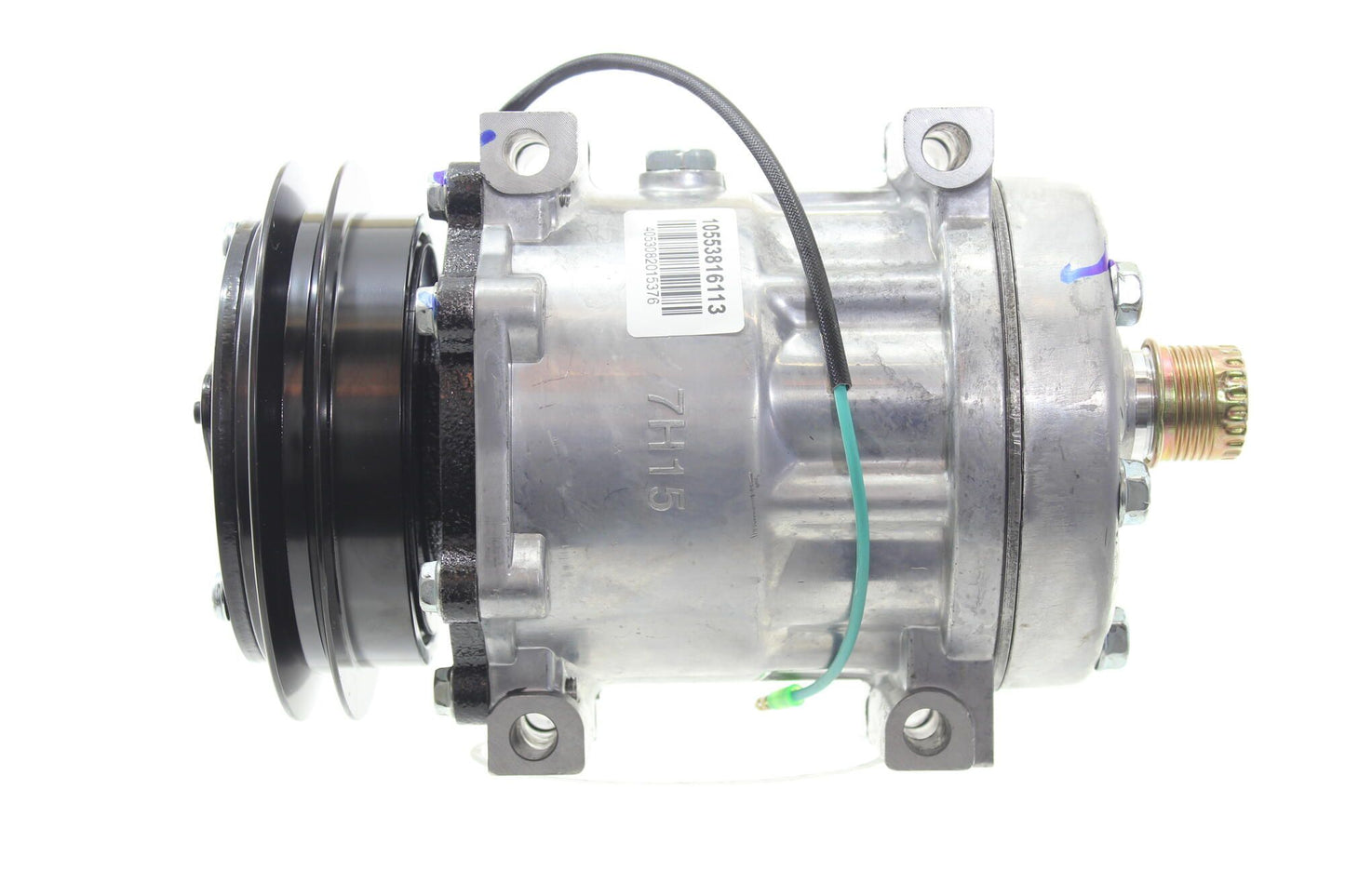

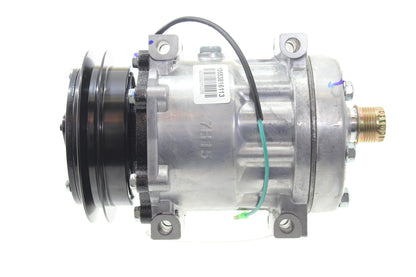

SD7H15-8133 24V New AC Compressor

Compressor Family: SD7H15
Style: Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW

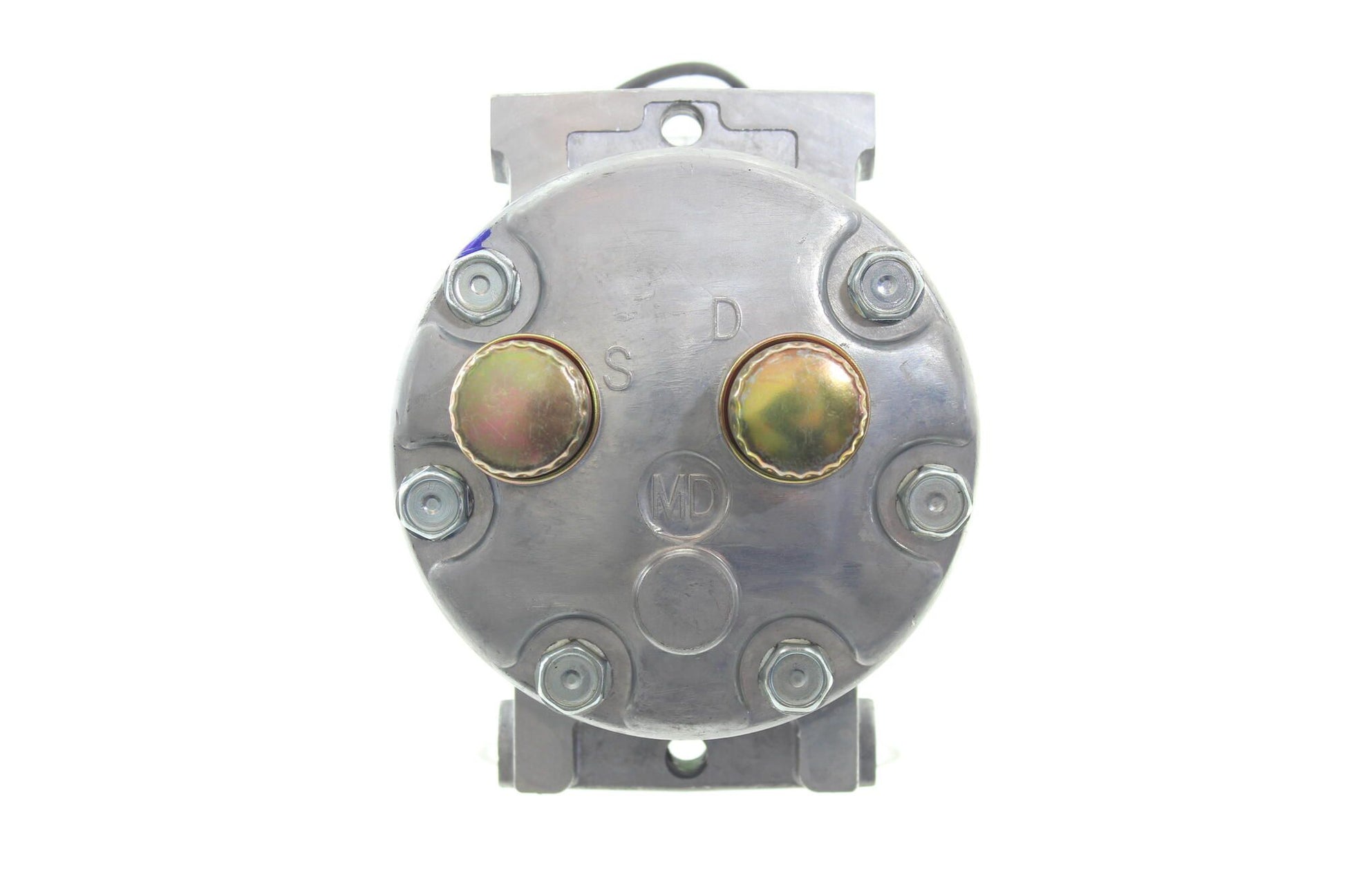

Cylinder Head: MD
Port Angle: Horizontal
Discharge Thread Size: 1 in. - 14 UNF
Suction Thread Size: 1 in. - 14 UNF

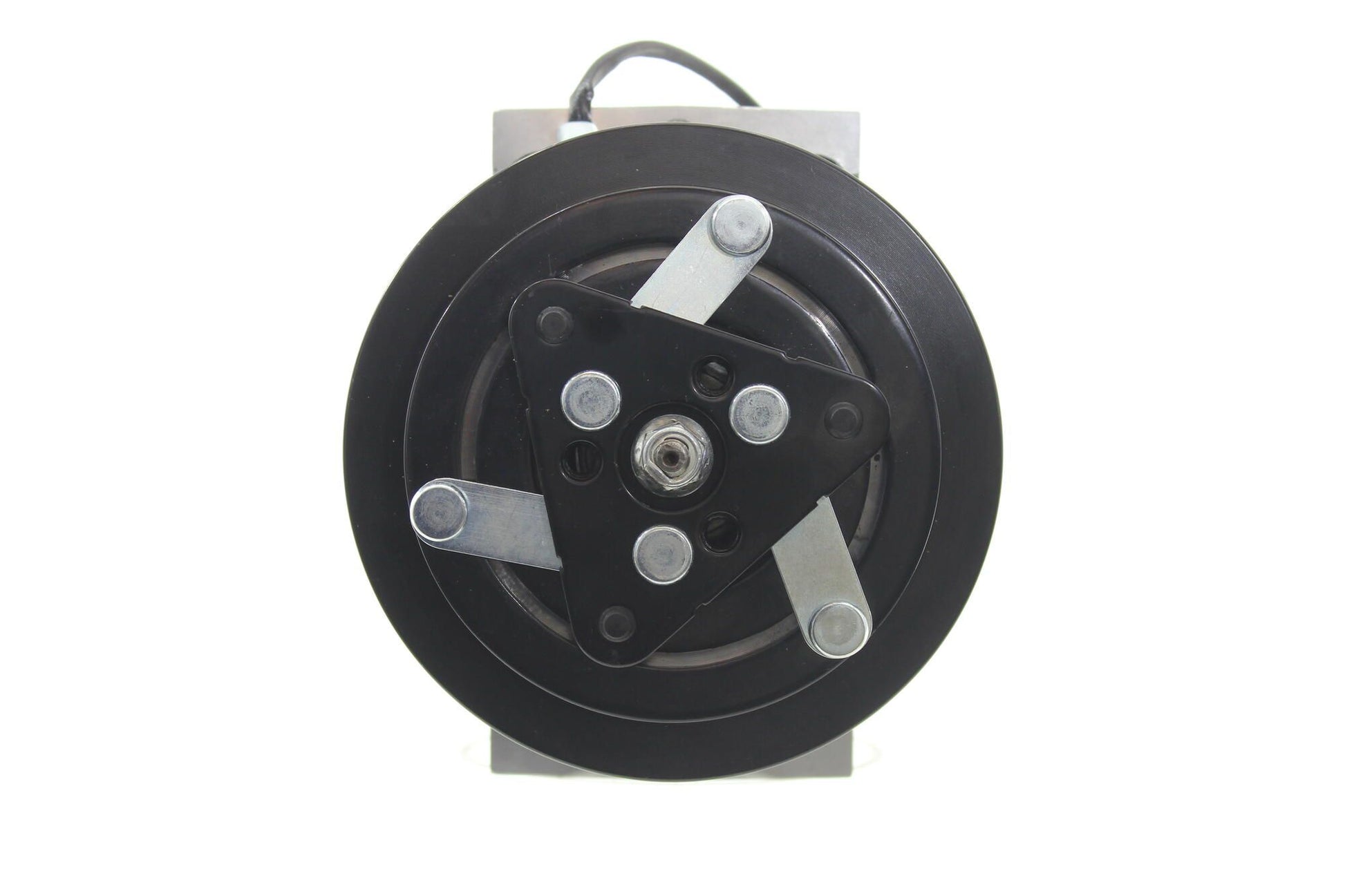

Clutch Diameter: 135 mm ~ 5 and 5/16 inches
Belt Type: V-Belt - 1/2 in. Width
Number of Grooves: 1
Voltage: 24

Part Nr.

066.436, 112447, 11288, 32876, 32876G, 45105009, 500388059, 8133, 851795N, 89469, ACP1551000S, SB.288S, SD7H158133, SD7H15-8133, TSP0155887, UVK148

Fit for:

IVECO EUROCARGO I-III 3.9D/5.9D 09.00-09.15
